usb_c_plug_shenzhenjingtuojin_918_118a2021y40002_vertical.step

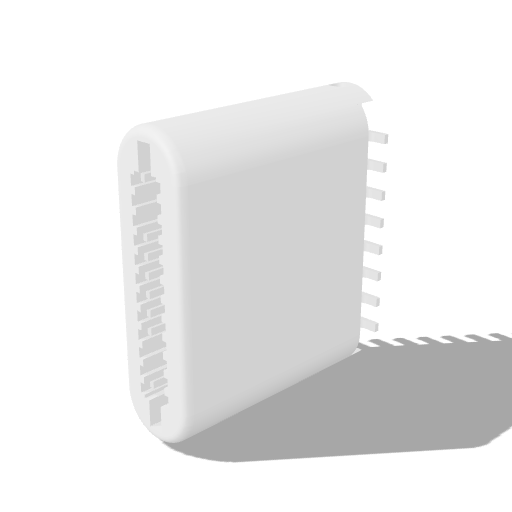

USB C Plug Shenzhen Jing Tuo Jin 918-118 A2021 Y40002 Vertical

Skills Contribute

connectorusbexternal-io

Loading USB C Plug Shenzhen Jing Tuo Jin 918-118 A2021 Y40002 Vertical 3D viewer

Summary

Connector USB connector footprint model, USB C Plug Shenzhen Jing Tuo Jin 918-118 A2021 Y40002 Vertical.

Part

Category: electronics
Family: connector-usb
Step Source: https://gitlab.com/kicad/libraries/kicad-packages3D/-/raw/0bc64e922178140eb6890377646efd45e15011bd/Connector_USB.3dshapes/USB_C_Plug_ShenzhenJingTuoJin_918-118A2021Y40002_Vertical.step
Model: USB_C_Plug_ShenzhenJingTuoJin_918-118A2021Y40002_Vertical
