texas_htssop_14_1ep_4_4x5mm_p0_65mm_ep3_4x5mm_mask3_155x3_255mm.step

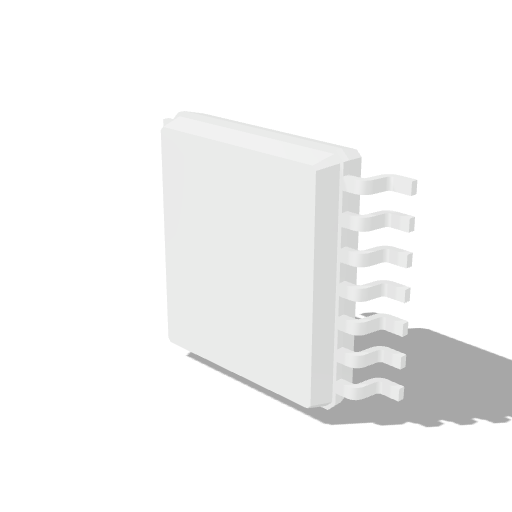

Texas HTSSOP-14-1 EP 4.4x5mm P0.65mm EP3.4x5mm Mask3.155x3.255mm

Skills Contribute

semiconductorpackagesmd

Loading Texas HTSSOP-14-1 EP 4.4x5mm P0.65mm EP3.4x5mm Mask3.155x3.255mm 3D viewer

Summary

Package SO semiconductor package model, Texas HTSSOP-14-1 EP 4.4x5mm P0.65mm EP3.4x5mm Mask3.155x3.255mm.

Part

Category: electronics
Family: package-so
Step Source: https://gitlab.com/kicad/libraries/kicad-packages3D/-/raw/0bc64e922178140eb6890377646efd45e15011bd/Package_SO.3dshapes/Texas_HTSSOP-14-1EP_4.4x5mm_P0.65mm_EP3.4x5mm_Mask3.155x3.255mm.step
Model: Texas_HTSSOP-14-1EP_4.4x5mm_P0.65mm_EP3.4x5mm_Mask3.155x3.255mm
Pitch mm: 0.65
