terminalblock_phoenix_mpt_0_5_7_2_54_1x07_p2_54mm_horizontal.step

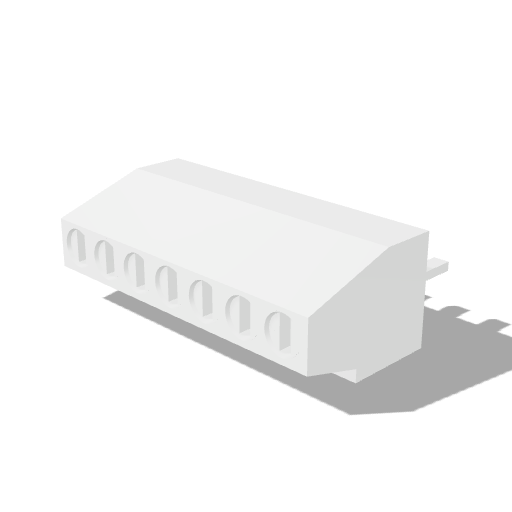

Terminal Block Phoenix MPT-0,5-7-2.54 1x07 P2.54mm Horizontal

Skills Contribute

connectorterminal-blockwire-to-board

Loading Terminal Block Phoenix MPT-0,5-7-2.54 1x07 P2.54mm Horizontal 3D viewer

Summary

Terminal Block Phoenix terminal block footprint model, Terminal Block Phoenix MPT-0,5-7-2.54 1x07 P2.54mm Horizontal.

Part

Category: electronics
Family: terminal-block-phoenix
Step Source: https://gitlab.com/kicad/libraries/kicad-packages3D/-/raw/0bc64e922178140eb6890377646efd45e15011bd/TerminalBlock_Phoenix.3dshapes/TerminalBlock_Phoenix_MPT-0%2C5-7-2.54_1x07_P2.54mm_Horizontal.step
Model: TerminalBlock_Phoenix_MPT-0,5-7-2.54_1x07_P2.54mm_Horizontal
Manufacturer: Phoenix Contact
Pitch mm: 2.54
