Terminal Block Phoenix MKDS-1,5-9 1x09 P5.00mm Horizontal

Skills Contribute

connectorterminal-blockwire-to-board

Loading Terminal Block Phoenix MKDS-1,5-9 1x09 P5.00mm Horizontal 3D viewer

Summary

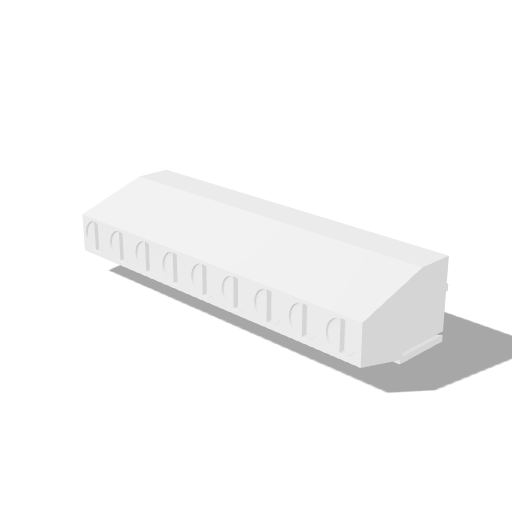

Terminal Block Phoenix terminal block footprint model, Terminal Block Phoenix MKDS-1,5-9 1x09 P5.00mm Horizontal.

Part

Category: electronics
Family: terminal-block-phoenix
Step Source: https://gitlab.com/kicad/libraries/kicad-packages3D/-/raw/0bc64e922178140eb6890377646efd45e15011bd/TerminalBlock_Phoenix.3dshapes/TerminalBlock_Phoenix_MKDS-1%2C5-9_1x09_P5.00mm_Horizontal.step
Model: TerminalBlock_Phoenix_MKDS-1,5-9_1x09_P5.00mm_Horizontal
Manufacturer: Phoenix Contact
Pitch mm: 5
