terminalblock_phoenix_mkds_1_5_15_1x15_p5_00mm_horizontal.step

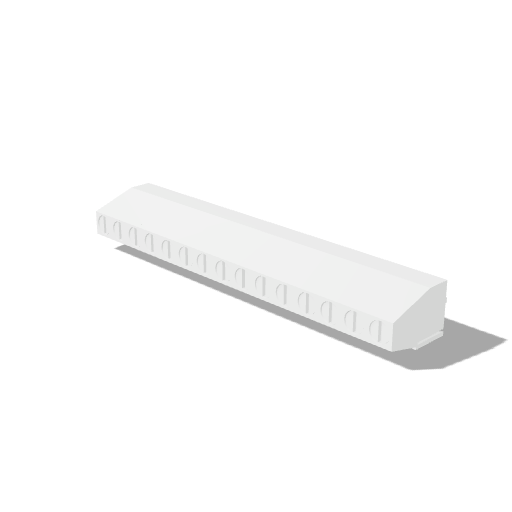

Terminal Block Phoenix MKDS-1,5-15 1x15 P5.00mm Horizontal

Skills Contribute

connectorterminal-blockwire-to-board

Loading Terminal Block Phoenix MKDS-1,5-15 1x15 P5.00mm Horizontal 3D viewer

Summary

Terminal Block Phoenix terminal block footprint model, Terminal Block Phoenix MKDS-1,5-15 1x15 P5.00mm Horizontal.

Part

Category: electronics
Family: terminal-block-phoenix
Step Source: https://gitlab.com/kicad/libraries/kicad-packages3D/-/raw/0bc64e922178140eb6890377646efd45e15011bd/TerminalBlock_Phoenix.3dshapes/TerminalBlock_Phoenix_MKDS-1%2C5-15_1x15_P5.00mm_Horizontal.step
Model: TerminalBlock_Phoenix_MKDS-1,5-15_1x15_P5.00mm_Horizontal
Manufacturer: Phoenix Contact
Pitch mm: 5
