terminalblock_phoenix_mkds_1_10_3_81_1x10_p3_81mm_horizontal.step

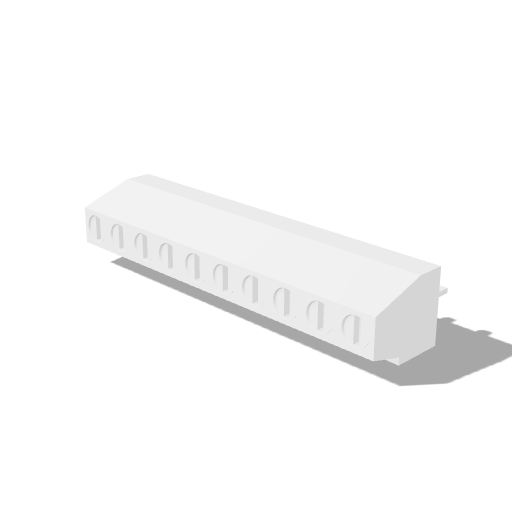

Terminal Block Phoenix MKDS-1-10-3.81 1x10 P3.81mm Horizontal

Skills Contribute

connectorterminal-blockwire-to-board

Loading Terminal Block Phoenix MKDS-1-10-3.81 1x10 P3.81mm Horizontal 3D viewer

Summary

Terminal Block Phoenix terminal block footprint model, Terminal Block Phoenix MKDS-1-10-3.81 1x10 P3.81mm Horizontal.

Part

Category: electronics
Family: terminal-block-phoenix
Step Source: https://gitlab.com/kicad/libraries/kicad-packages3D/-/raw/0bc64e922178140eb6890377646efd45e15011bd/TerminalBlock_Phoenix.3dshapes/TerminalBlock_Phoenix_MKDS-1-10-3.81_1x10_P3.81mm_Horizontal.step
Model: TerminalBlock_Phoenix_MKDS-1-10-3.81_1x10_P3.81mm_Horizontal
Manufacturer: Phoenix Contact
Pitch mm: 3.81
