terminalblock_ningbo_kagnex_hb9500_1x04_p9_5mm.step

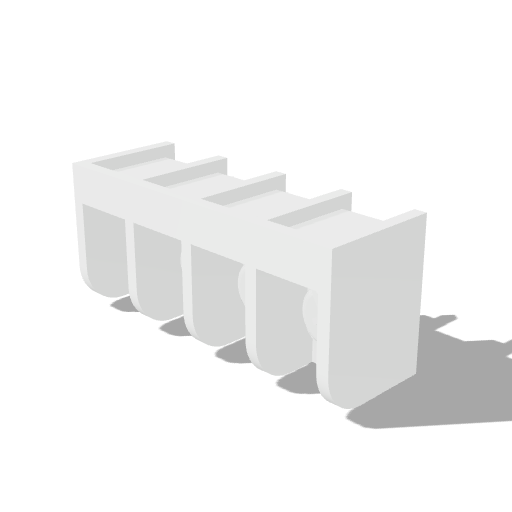

Terminal Block Ningbo-Kagnex HB9500 1x04 P9.5mm

Skills Contribute

connectorterminal-blockwire-to-board

Loading Terminal Block Ningbo-Kagnex HB9500 1x04 P9.5mm 3D viewer

Summary

Terminal Block Ningbo-Kagnex terminal block footprint model, Terminal Block Ningbo-Kagnex HB9500 1x04 P9.5mm.

Part

Category: electronics
Family: terminal-block-ningbo-kagnex
Step Source: https://gitlab.com/kicad/libraries/kicad-packages3D/-/raw/0bc64e922178140eb6890377646efd45e15011bd/TerminalBlock_Ningbo-Kagnex.3dshapes/TerminalBlock_Ningbo-Kagnex_HB9500_1x04_P9.5mm.step
Model: TerminalBlock_Ningbo-Kagnex_HB9500_1x04_P9.5mm
Manufacturer: Ningbo Kagnex
Pitch mm: 9.5
