sw_dip_spstx12_piano_cts_series194_12mstn_w7_62mm_p2_54mm.step

SW DIP SPS Tx12 Piano CTS Series194-12 MSTN W7.62mm P2.54mm

Skills Contribute

switchthrough-hole

Loading SW DIP SPS Tx12 Piano CTS Series194-12 MSTN W7.62mm P2.54mm 3D viewer

Summary

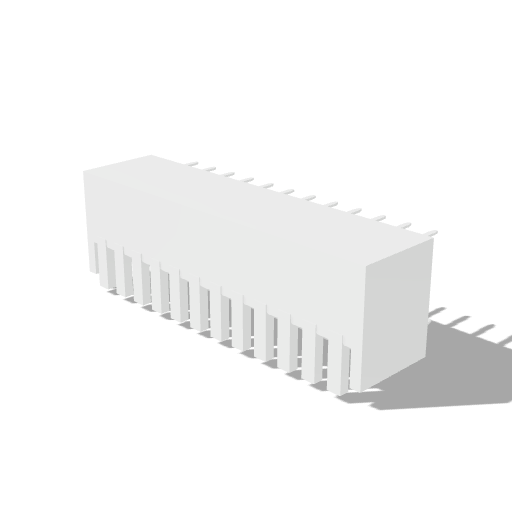

Through-hole switch/button footprint model, SW DIP SPS Tx12 Piano CTS Series194-12 MSTN W7.62mm P2.54mm.

Part

Category: electronics
Family: button-switch-tht
Step Source: https://gitlab.com/kicad/libraries/kicad-packages3D/-/raw/0bc64e922178140eb6890377646efd45e15011bd/Button_Switch_THT.3dshapes/SW_DIP_SPSTx12_Piano_CTS_Series194-12MSTN_W7.62mm_P2.54mm.step
Model: SW_DIP_SPSTx12_Piano_CTS_Series194-12MSTN_W7.62mm_P2.54mm
Mounting Style: through-hole
Pitch mm: 2.54
