sw_dip_spstx09_slide_6_7x24_42mm_w6_73mm_p2_54mm_lowprofile_jpin.step

SW DIP SPS Tx09 Slide 6.7x24.42mm W6.73mm P2.54mm Low Profile J Pin

Skills Contribute

switchsmd

Loading SW DIP SPS Tx09 Slide 6.7x24.42mm W6.73mm P2.54mm Low Profile J Pin 3D viewer

Summary

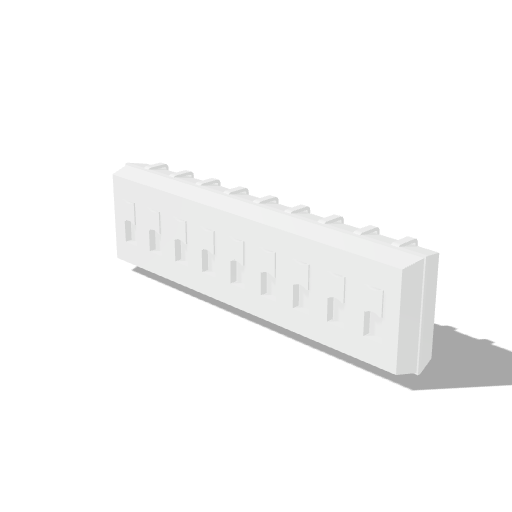

Surface-mount switch/button footprint model, SW DIP SPS Tx09 Slide 6.7x24.42mm W6.73mm P2.54mm Low Profile J Pin.

Part

Category: electronics
Family: button-switch-smd
Step Source: https://gitlab.com/kicad/libraries/kicad-packages3D/-/raw/0bc64e922178140eb6890377646efd45e15011bd/Button_Switch_SMD.3dshapes/SW_DIP_SPSTx09_Slide_6.7x24.42mm_W6.73mm_P2.54mm_LowProfile_JPin.step
Model: SW_DIP_SPSTx09_Slide_6.7x24.42mm_W6.73mm_P2.54mm_LowProfile_JPin
Mounting Style: smd
Pitch mm: 2.54
