sw_dip_spstx03_slide_6_7x9_18mm_w7_62mm_p2_54mm_lowprofile.step

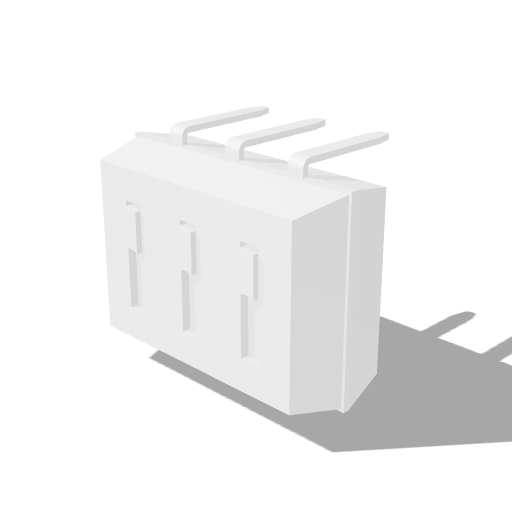

SW DIP SPS Tx03 Slide 6.7x9.18mm W7.62mm P2.54mm Low Profile

Skills Contribute

switchthrough-hole

Loading SW DIP SPS Tx03 Slide 6.7x9.18mm W7.62mm P2.54mm Low Profile 3D viewer

Summary

Through-hole switch/button footprint model, SW DIP SPS Tx03 Slide 6.7x9.18mm W7.62mm P2.54mm Low Profile.

Part

Category: electronics
Family: button-switch-tht
Step Source: https://gitlab.com/kicad/libraries/kicad-packages3D/-/raw/0bc64e922178140eb6890377646efd45e15011bd/Button_Switch_THT.3dshapes/SW_DIP_SPSTx03_Slide_6.7x9.18mm_W7.62mm_P2.54mm_LowProfile.step
Model: SW_DIP_SPSTx03_Slide_6.7x9.18mm_W7.62mm_P2.54mm_LowProfile
Mounting Style: through-hole
Pitch mm: 2.54
