Samtec HPM-09-01-x-S Straight 1x09 Pitch5.08mm

Skills Contribute

connectorboard-to-boardthrough-hole

Loading Samtec HPM-09-01-x-S Straight 1x09 Pitch5.08mm 3D viewer

Summary

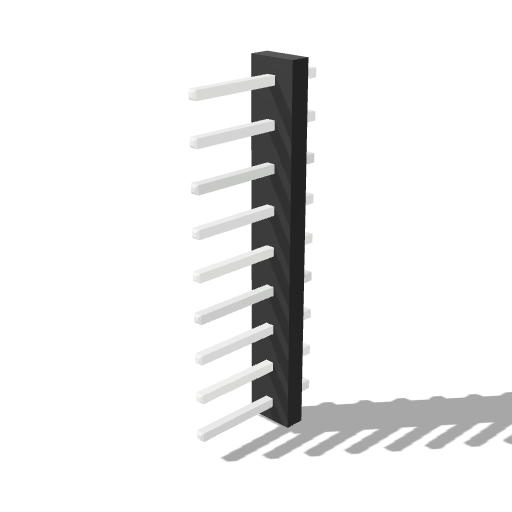

Connector Samtec HPM THT connector footprint model, Samtec HPM-09-01-x-S Straight 1x09 Pitch5.08mm.

Part

Category: electronics
Family: connector-samtec-hpm-tht
Step Source: https://gitlab.com/kicad/libraries/kicad-packages3D/-/raw/0bc64e922178140eb6890377646efd45e15011bd/Connector_Samtec_HPM_THT.3dshapes/Samtec_HPM-09-01-x-S_Straight_1x09_Pitch5.08mm.step
Model: Samtec_HPM-09-01-x-S_Straight_1x09_Pitch5.08mm
Manufacturer: Samtec
Mounting Style: through-hole
