samtec_hpm_04_05_x_s_straight_1x04_pitch5_08mm.step

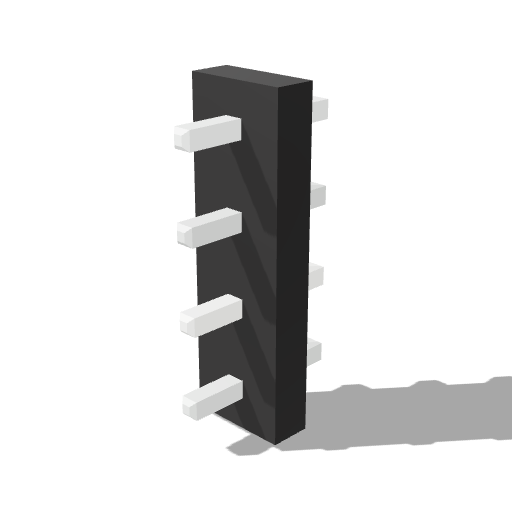

Samtec HPM-04-05-x-S Straight 1x04 Pitch5.08mm

Skills Contribute

connectorboard-to-boardthrough-hole

Loading Samtec HPM-04-05-x-S Straight 1x04 Pitch5.08mm 3D viewer

Summary

Connector Samtec HPM THT connector footprint model, Samtec HPM-04-05-x-S Straight 1x04 Pitch5.08mm.

Part

Category: electronics
Family: connector-samtec-hpm-tht
Step Source: https://gitlab.com/kicad/libraries/kicad-packages3D/-/raw/0bc64e922178140eb6890377646efd45e15011bd/Connector_Samtec_HPM_THT.3dshapes/Samtec_HPM-04-05-x-S_Straight_1x04_Pitch5.08mm.step
Model: Samtec_HPM-04-05-x-S_Straight_1x04_Pitch5.08mm
Manufacturer: Samtec
Mounting Style: through-hole
