r_axial_din0918_l18_0mm_d9_0mm_p25_40mm_horizontal.step

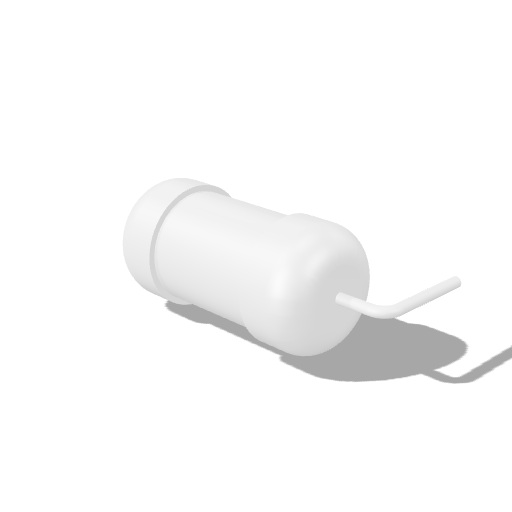

R Axial DIN0918 L18.0mm D9.0mm P25.40mm Horizontal

Skills Contribute

passiveresistorthrough-hole

Loading R Axial DIN0918 L18.0mm D9.0mm P25.40mm Horizontal 3D viewer

Summary

Through-hole resistor footprint model, R Axial DIN0918 L18.0mm D9.0mm P25.40mm Horizontal.

Part

Category: electronics
Family: resistor-tht
Step Source: https://gitlab.com/kicad/libraries/kicad-packages3D/-/raw/0bc64e922178140eb6890377646efd45e15011bd/Resistor_THT.3dshapes/R_Axial_DIN0918_L18.0mm_D9.0mm_P25.40mm_Horizontal.step
Model: R_Axial_DIN0918_L18.0mm_D9.0mm_P25.40mm_Horizontal
Mounting Style: through-hole
Pitch mm: 25.4
