r_axial_din0617_l17_0mm_d6_0mm_p30_48mm_horizontal.step

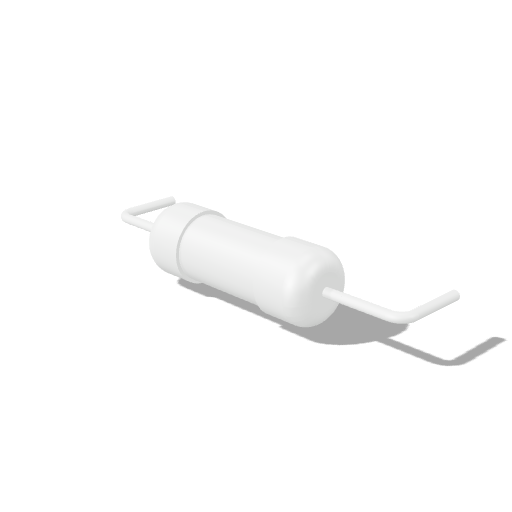

R Axial DIN0617 L17.0mm D6.0mm P30.48mm Horizontal

Skills Contribute

passiveresistorthrough-hole

Loading R Axial DIN0617 L17.0mm D6.0mm P30.48mm Horizontal 3D viewer

Summary

Through-hole resistor footprint model, R Axial DIN0617 L17.0mm D6.0mm P30.48mm Horizontal.

Part

Category: electronics
Family: resistor-tht
Step Source: https://gitlab.com/kicad/libraries/kicad-packages3D/-/raw/0bc64e922178140eb6890377646efd45e15011bd/Resistor_THT.3dshapes/R_Axial_DIN0617_L17.0mm_D6.0mm_P30.48mm_Horizontal.step
Model: R_Axial_DIN0617_L17.0mm_D6.0mm_P30.48mm_Horizontal
Mounting Style: through-hole
Pitch mm: 30.48
