profile_4080l_i_slot8_l300.step

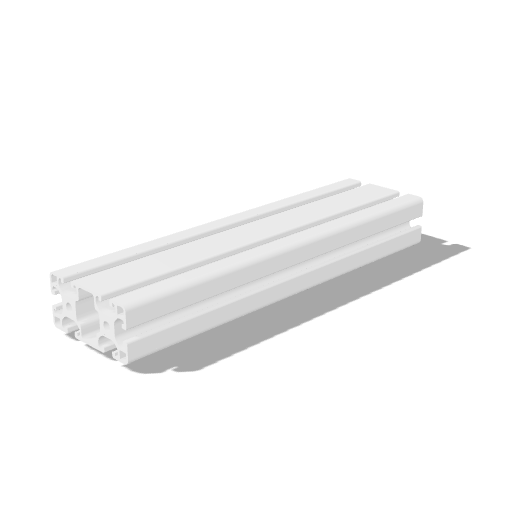

40 x 80L I-type slot-8 aluminum extrusion profile body, 300 mm length

Skills Contribute

extrusiont-slotaluminum

Loading 40 x 80L I-type slot-8 aluminum extrusion profile body, 300 mm length 3D viewer

Summary

40 x 80 I-type slot-8 aluminum T-slot extrusion, 300 mm length.

Part

Category: profile
Family: t-slot-extrusion
Material: aluminum
Width mm: 40
Height mm: 80
Length mm: 300
Profile Series: 4080L
Base Profile ID: profile_4080l_i_slot8
Nominal Size: 40 x 80 x 300 mm
Slot Size mm: 8
Profile Type: I-type
Variant: body
