profile_4040l_i_slot8_l250.step

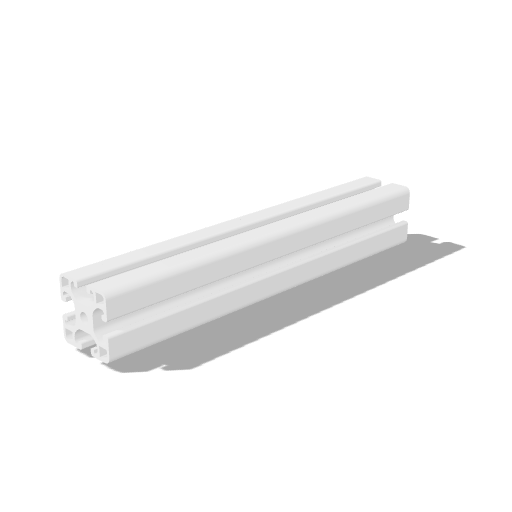

40 x 40L I-type slot-8 aluminum extrusion profile, 250 mm length

Skills Contribute

extrusiont-slotaluminum

Loading 40 x 40L I-type slot-8 aluminum extrusion profile, 250 mm length 3D viewer

Summary

40 x 40 I-type slot-8 aluminum T-slot extrusion, 250 mm length.

Part

Category: profile
Family: t-slot-extrusion
Material: aluminum
Width mm: 40
Height mm: 40
Length mm: 250
Profile Series: 4040L
Base Profile ID: profile_4040l_i_slot8
Nominal Size: 40 x 40 x 250 mm
Slot Size mm: 8
Profile Type: I-type
