profile_3030_b_slot8_l150.step

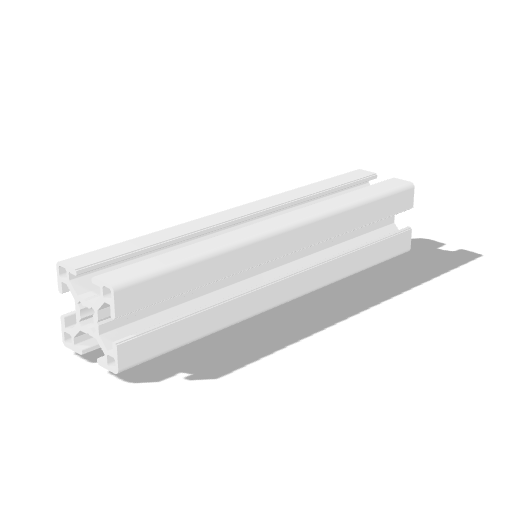

30 x 30 B-type slot-8 aluminum extrusion profile, 150 mm length

Skills Contribute

extrusiont-slotaluminum

Loading 30 x 30 B-type slot-8 aluminum extrusion profile, 150 mm length 3D viewer

Summary

30 x 30 B-type slot-8 aluminum T-slot extrusion, 150 mm length.

Part

Category: profile
Family: t-slot-extrusion
Material: aluminum
Width mm: 30
Height mm: 30
Length mm: 150
Profile Series: 3030
Base Profile ID: profile_3030_b_slot8
Nominal Size: 30 x 30 x 150 mm
Slot Size mm: 8
Profile Type: B-type
