profile_2040_b_slot6_l750.step

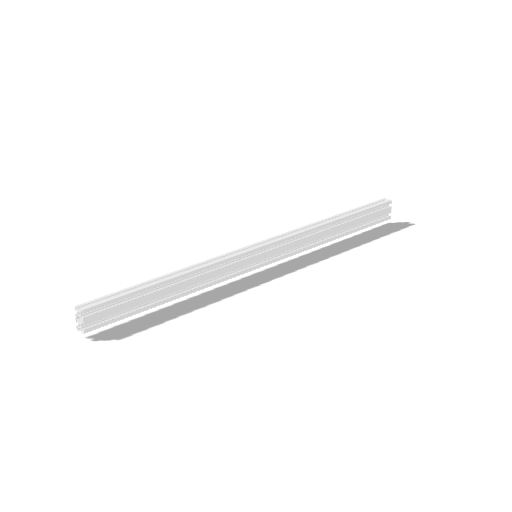

20 x 40 B-type slot-6 aluminum extrusion profile, 750 mm length

Skills Contribute

extrusiont-slotaluminum

Loading 20 x 40 B-type slot-6 aluminum extrusion profile, 750 mm length 3D viewer

Summary

20 x 40 B-type slot-6 aluminum T-slot extrusion, 750 mm length.

Part

Category: profile
Family: t-slot-extrusion
Material: aluminum
Width mm: 20
Height mm: 40
Length mm: 750
Profile Series: 2040
Base Profile ID: profile_2040_b_slot6
Nominal Size: 20 x 40 x 750 mm
Slot Size mm: 6
Profile Type: B-type
