profile_2020_i_slot5_item_compatible_l1000.step

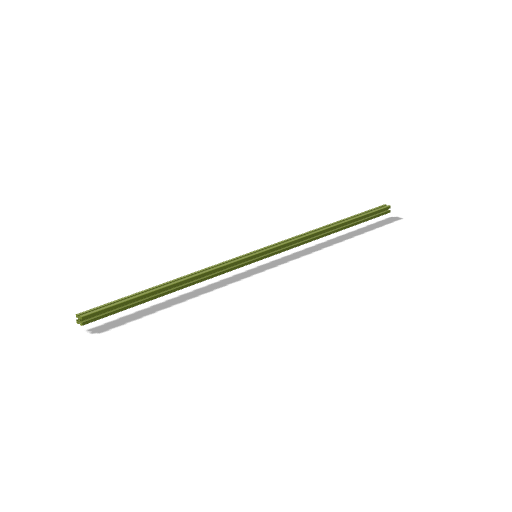

20 x 20 I-type slot-5 aluminum extrusion profile, Item-compatible, 1000 mm length

Skills Contribute

extrusiont-slotaluminum

Loading 20 x 20 I-type slot-5 aluminum extrusion profile, Item-compatible, 1000 mm length 3D viewer

Summary

20 x 20 I-type slot-5 aluminum T-slot extrusion, 1000 mm length.

Part

Category: profile
Family: t-slot-extrusion
Material: aluminum
Width mm: 20
Height mm: 20
Length mm: 1000
Profile Series: 2020
Base Profile ID: profile_2020_i_slot5_item_compatible
Nominal Size: 20 x 20 x 1000 mm
Slot Size mm: 5
Profile Type: I-type
Compatible System: Item
