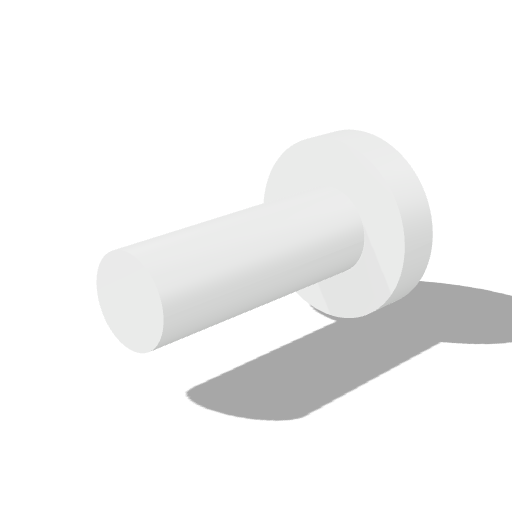

press_fit_pcb_standoff_m2p5_h010.step

Board supports and retainers, M2.5, H=10 mm, press_fit_pcb_standoff

Skills Contribute

standoff

Loading Board supports and retainers, M2.5, H=10 mm, press_fit_pcb_standoff 3D viewer

Summary

Board support/retainer, M2.5, H=10 mm, press-fit PCB standoff.

Part

Category: mechanical-hardware
Family: pcb-support
Geometry Representation: analytic simplified
Height mm: 10
Support Kind: press_fit_pcb_standoff
Thread Or Hole Size: M2.5
