pinheader_1x36_p2_00mm_vertical_smd_pin1left.step

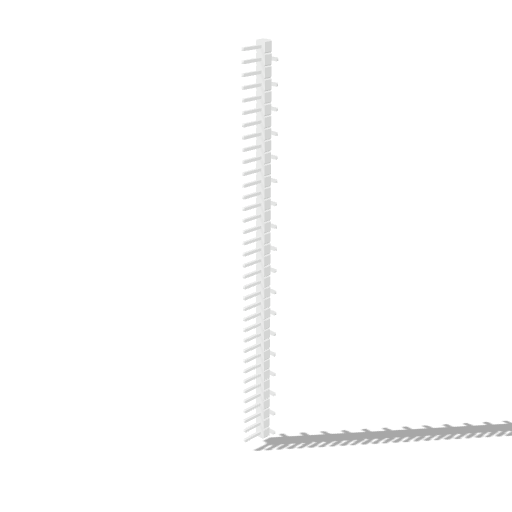

Pin Header 1x36 P2.00mm Vertical SMD Pin1Left

Skills Contribute

connectorboard-to-boardpin-header

Loading Pin Header 1x36 P2.00mm Vertical SMD Pin1Left 3D viewer

Summary

Pin header, Pin Header 1x36 P2.00mm Vertical SMD Pin1Left.

Part

Category: electronics
Family: 2-00-mm-pitch-pin-header
Model: PinHeader_1x36_P2.00mm_Vertical_SMD_Pin1Left
Pitch mm: 2
