pinheader_1x21_p1_27mm_vertical_smd_pin1right.step

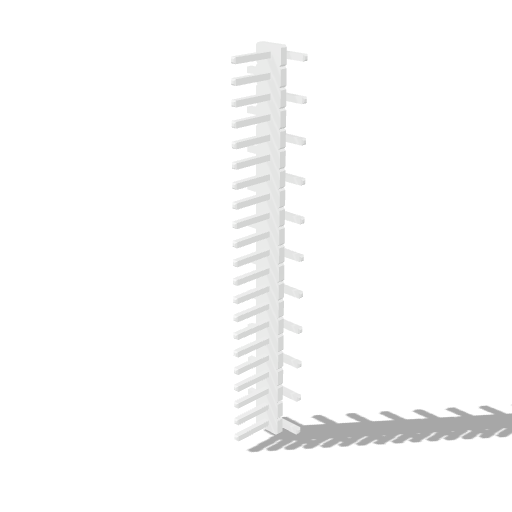

Pin Header 1x21 P1.27mm Vertical SMD Pin1Right

Skills Contribute

connectorboard-to-boardpin-header

Loading Pin Header 1x21 P1.27mm Vertical SMD Pin1Right 3D viewer

Summary

Pin header, Pin Header 1x21 P1.27mm Vertical SMD Pin1Right.

Part

Category: electronics
Family: 1-27-mm-pitch-pin-header
Model: PinHeader_1x21_P1.27mm_Vertical_SMD_Pin1Right
Pitch mm: 1.27
