pinheader_1x20_p2_54mm_vertical_smd_pin1left.step

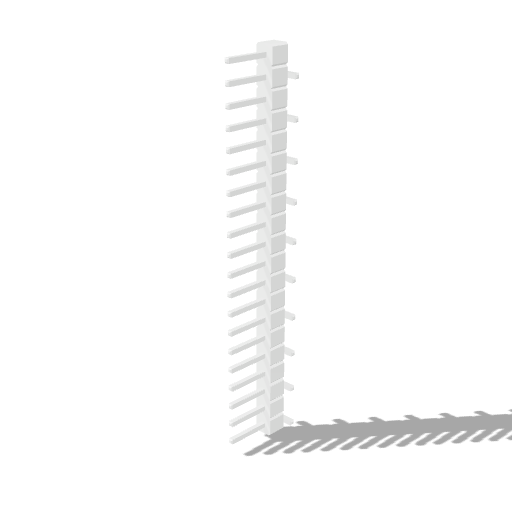

Pin Header 1x20 P2.54mm Vertical SMD Pin1Left

Skills Contribute

connectorboard-to-boardpin-header

Loading Pin Header 1x20 P2.54mm Vertical SMD Pin1Left 3D viewer

Summary

Pin header, Pin Header 1x20 P2.54mm Vertical SMD Pin1Left.

Part

Category: electronics
Family: 2-54-mm-pitch-pin-header
Model: PinHeader_1x20_P2.54mm_Vertical_SMD_Pin1Left
Pitch mm: 2.54
