pinheader_1x16_p2_00mm_vertical_smd_pin1right.step

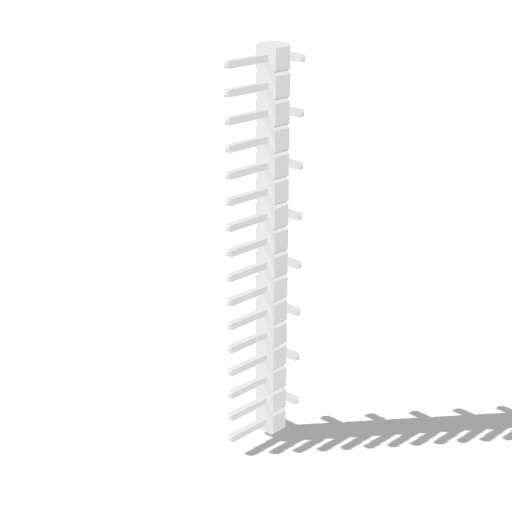

Pin Header 1x16 P2.00mm Vertical SMD Pin1Right

Skills Contribute

connectorboard-to-boardpin-header

Loading Pin Header 1x16 P2.00mm Vertical SMD Pin1Right 3D viewer

Summary

Pin header, Pin Header 1x16 P2.00mm Vertical SMD Pin1Right.

Part

Category: electronics
Family: 2-00-mm-pitch-pin-header
Model: PinHeader_1x16_P2.00mm_Vertical_SMD_Pin1Right
Pitch mm: 2
