phoenixcontact_spt_5_11_v_7_5_zb_1x11_p7_5mm_vertical.step

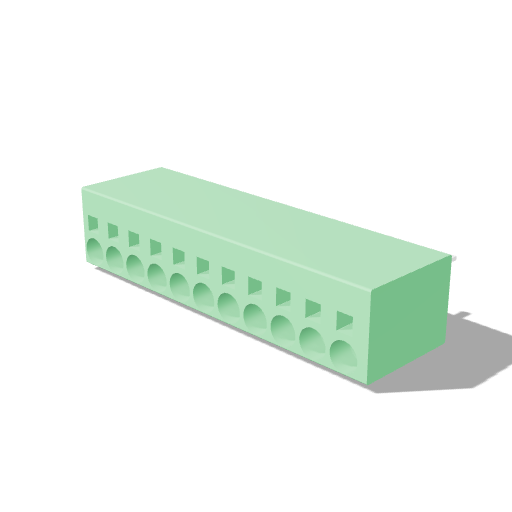

Phoenix Contact SPT 5 11-V-7.5-ZB 1x11 P7.5mm Vertical

Skills Contribute

connectorterminal-blockwire-to-board

Loading Phoenix Contact SPT 5 11-V-7.5-ZB 1x11 P7.5mm Vertical 3D viewer

Summary

Connector Phoenix SPT connector footprint model, Phoenix Contact SPT 5 11-V-7.5-ZB 1x11 P7.5mm Vertical.

Part

Category: electronics
Family: connector-phoenix-spt
Step Source: https://gitlab.com/kicad/libraries/kicad-packages3D/-/raw/0bc64e922178140eb6890377646efd45e15011bd/Connector_Phoenix_SPT.3dshapes/PhoenixContact_SPT_5_11-V-7.5-ZB_1x11_P7.5mm_Vertical.step
Model: PhoenixContact_SPT_5_11-V-7.5-ZB_1x11_P7.5mm_Vertical
Manufacturer: Phoenix Contact
Pitch mm: 7.5
