phoenixcontact_spt_2_5_10_v_5_0_ex_1x10_p5_0mm_vertical.step

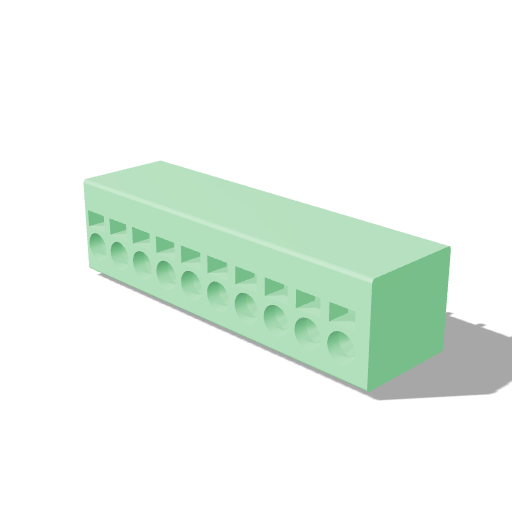

Phoenix Contact SPT 2.5 10-V-5.0-EX 1x10 P5.0mm Vertical

Skills Contribute

connectorterminal-blockwire-to-board

Loading Phoenix Contact SPT 2.5 10-V-5.0-EX 1x10 P5.0mm Vertical 3D viewer

Summary

Connector Phoenix SPT connector footprint model, Phoenix Contact SPT 2.5 10-V-5.0-EX 1x10 P5.0mm Vertical.

Part

Category: electronics
Family: connector-phoenix-spt
Step Source: https://gitlab.com/kicad/libraries/kicad-packages3D/-/raw/0bc64e922178140eb6890377646efd45e15011bd/Connector_Phoenix_SPT.3dshapes/PhoenixContact_SPT_2.5_10-V-5.0-EX_1x10_P5.0mm_Vertical.step
Model: PhoenixContact_SPT_2.5_10-V-5.0-EX_1x10_P5.0mm_Vertical
Manufacturer: Phoenix Contact
Pitch mm: 5
