phoenixcontact_mstbva_2_5_4_g_1x04_p5_00mm_vertical.step

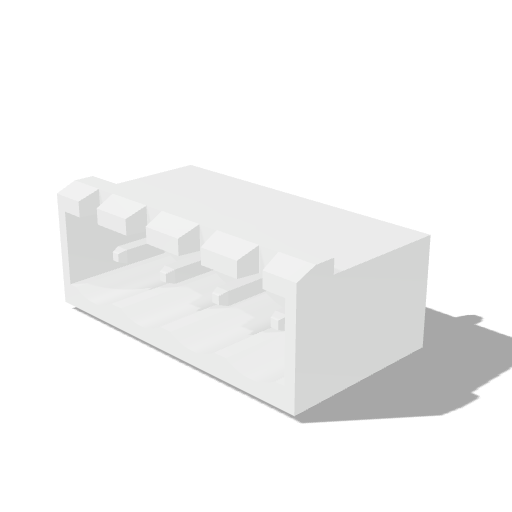

Phoenix Contact MSTBVA 2,5 4-G 1x04 P5.00mm Vertical

Skills Contribute

connectorterminal-blockwire-to-board

Loading Phoenix Contact MSTBVA 2,5 4-G 1x04 P5.00mm Vertical 3D viewer

Summary

Connector Phoenix MSTB connector footprint model, Phoenix Contact MSTBVA 2,5 4-G 1x04 P5.00mm Vertical.

Part

Category: electronics
Family: connector-phoenix-mstb
Step Source: https://gitlab.com/kicad/libraries/kicad-packages3D/-/raw/0bc64e922178140eb6890377646efd45e15011bd/Connector_Phoenix_MSTB.3dshapes/PhoenixContact_MSTBVA_2%2C5_4-G_1x04_P5.00mm_Vertical.step
Model: PhoenixContact_MSTBVA_2,5_4-G_1x04_P5.00mm_Vertical
Manufacturer: Phoenix Contact
Pitch mm: 5
