phoenixcontact_mstbva_2_5_2_g_5_08_1x02_p5_08mm_vertical.step

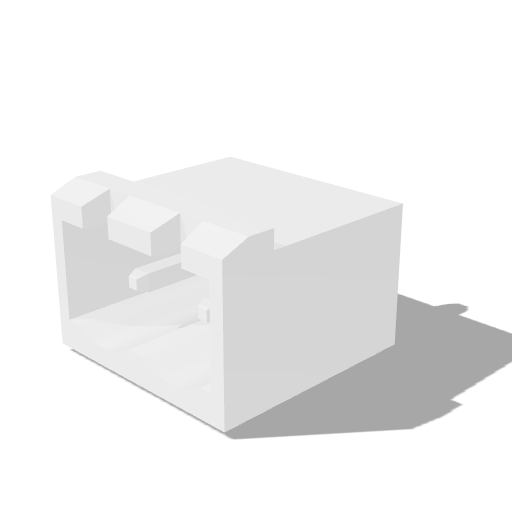

Phoenix Contact MSTBVA 2,5 2-G-5,08 1x02 P5.08mm Vertical

Skills Contribute

connectorterminal-blockwire-to-board

Loading Phoenix Contact MSTBVA 2,5 2-G-5,08 1x02 P5.08mm Vertical 3D viewer

Summary

Connector Phoenix MSTB connector footprint model, Phoenix Contact MSTBVA 2,5 2-G-5,08 1x02 P5.08mm Vertical.

Part

Category: electronics
Family: connector-phoenix-mstb
Step Source: https://gitlab.com/kicad/libraries/kicad-packages3D/-/raw/0bc64e922178140eb6890377646efd45e15011bd/Connector_Phoenix_MSTB.3dshapes/PhoenixContact_MSTBVA_2%2C5_2-G-5%2C08_1x02_P5.08mm_Vertical.step
Model: PhoenixContact_MSTBVA_2,5_2-G-5,08_1x02_P5.08mm_Vertical
Manufacturer: Phoenix Contact
Pitch mm: 5.08
