phoenixcontact_mstbv_2_5_10_gf_1x10_p5_00mm_vertical_threadedflange_mounthole.step

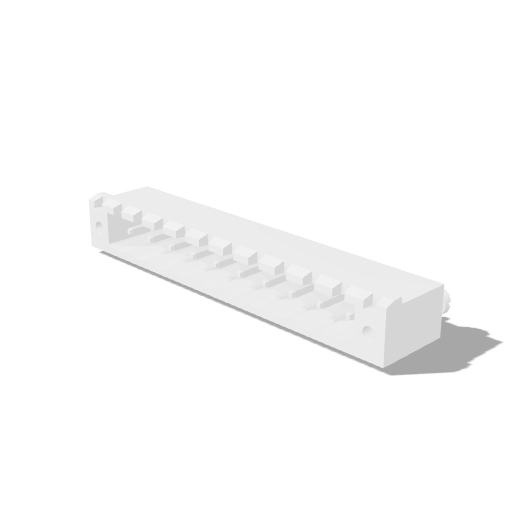

Phoenix Contact MSTBV 2,5 10-GF 1x10 P5.00mm Vertical Threaded Flange Mount Hole

Skills Contribute

connectorterminal-blockwire-to-board

Loading Phoenix Contact MSTBV 2,5 10-GF 1x10 P5.00mm Vertical Threaded Flange Mount Hole 3D viewer

Summary

Connector Phoenix MSTB connector footprint model, Phoenix Contact MSTBV 2,5 10-GF 1x10 P5.00mm Vertical Threaded Flange Mount Hole.

Part

Category: electronics
Family: connector-phoenix-mstb
Step Source: https://gitlab.com/kicad/libraries/kicad-packages3D/-/raw/0bc64e922178140eb6890377646efd45e15011bd/Connector_Phoenix_MSTB.3dshapes/PhoenixContact_MSTBV_2%2C5_10-GF_1x10_P5.00mm_Vertical_ThreadedFlange_MountHole.step
Model: PhoenixContact_MSTBV_2,5_10-GF_1x10_P5.00mm_Vertical_ThreadedFlange_MountHole
Manufacturer: Phoenix Contact
Pitch mm: 5
