phoenixcontact_mstb_2_5_4_gf_1x04_p5_00mm_horizontal_threadedflange_mounthole.step

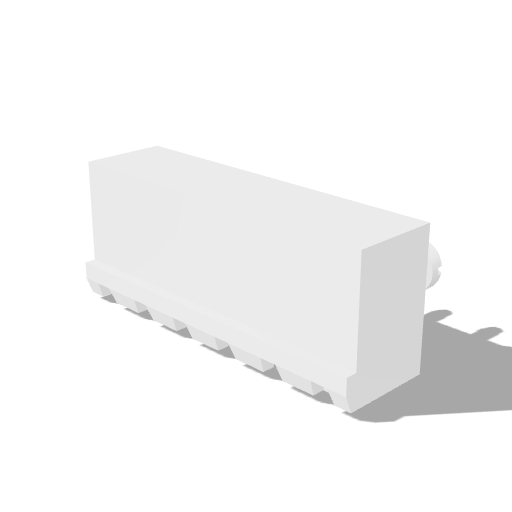

Phoenix Contact MSTB 2,5 4-GF 1x04 P5.00mm Horizontal Threaded Flange Mount Hole

Skills Contribute

connectorterminal-blockwire-to-board

Loading Phoenix Contact MSTB 2,5 4-GF 1x04 P5.00mm Horizontal Threaded Flange Mount Hole 3D viewer

Summary

Connector Phoenix MSTB connector footprint model, Phoenix Contact MSTB 2,5 4-GF 1x04 P5.00mm Horizontal Threaded Flange Mount Hole.

Part

Category: electronics
Family: connector-phoenix-mstb
Step Source: https://gitlab.com/kicad/libraries/kicad-packages3D/-/raw/0bc64e922178140eb6890377646efd45e15011bd/Connector_Phoenix_MSTB.3dshapes/PhoenixContact_MSTB_2%2C5_4-GF_1x04_P5.00mm_Horizontal_ThreadedFlange_MountHole.step
Model: PhoenixContact_MSTB_2,5_4-GF_1x04_P5.00mm_Horizontal_ThreadedFlange_MountHole
Manufacturer: Phoenix Contact
Pitch mm: 5
