phoenixcontact_mcv_1_5_3_gf_3_81_1x03_p3_81mm_vertical_threadedflange.step

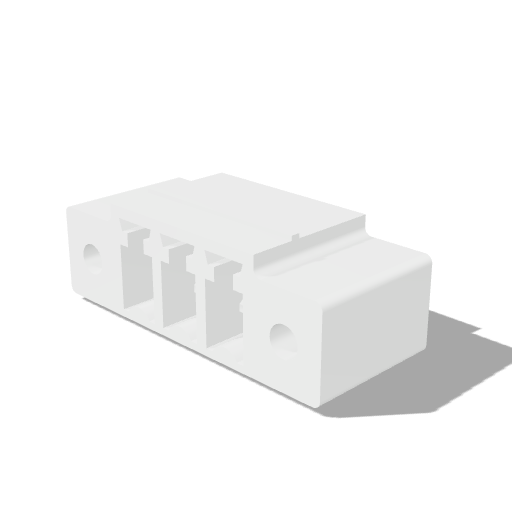

Phoenix Contact MCV 1,5 3-GF-3.81 1x03 P3.81mm Vertical Threaded Flange

Skills Contribute

connectorterminal-blockwire-to-board

Loading Phoenix Contact MCV 1,5 3-GF-3.81 1x03 P3.81mm Vertical Threaded Flange 3D viewer

Summary

Connector Phoenix MC connector footprint model, Phoenix Contact MCV 1,5 3-GF-3.81 1x03 P3.81mm Vertical Threaded Flange.

Part

Category: electronics
Family: connector-phoenix-mc
Step Source: https://gitlab.com/kicad/libraries/kicad-packages3D/-/raw/0bc64e922178140eb6890377646efd45e15011bd/Connector_Phoenix_MC.3dshapes/PhoenixContact_MCV_1%2C5_3-GF-3.81_1x03_P3.81mm_Vertical_ThreadedFlange.step
Model: PhoenixContact_MCV_1,5_3-GF-3.81_1x03_P3.81mm_Vertical_ThreadedFlange
Manufacturer: Phoenix Contact
Pitch mm: 3.81
