phoenixcontact_mcv_1_5_10_g_5_08_1x10_p5_08mm_vertical.step

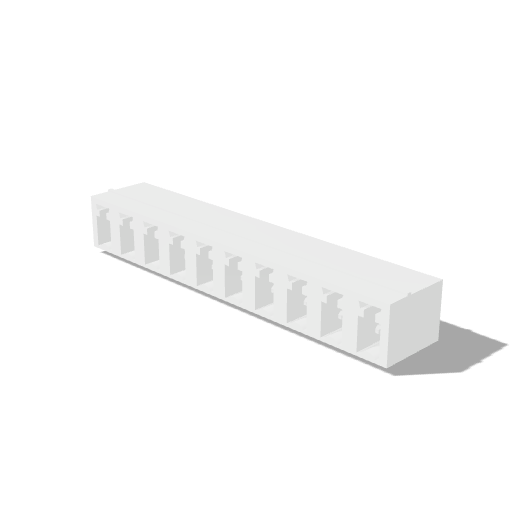

Phoenix Contact MCV 1,5 10-G-5.08 1x10 P5.08mm Vertical

Skills Contribute

connectorterminal-blockwire-to-boardpower

Loading Phoenix Contact MCV 1,5 10-G-5.08 1x10 P5.08mm Vertical 3D viewer

Summary

Connector Phoenix MC High Voltage connector footprint model, Phoenix Contact MCV 1,5 10-G-5.08 1x10 P5.08mm Vertical.

Part

Category: electronics
Family: connector-phoenix-mc-highvoltage
Step Source: https://gitlab.com/kicad/libraries/kicad-packages3D/-/raw/0bc64e922178140eb6890377646efd45e15011bd/Connector_Phoenix_MC_HighVoltage.3dshapes/PhoenixContact_MCV_1%2C5_10-G-5.08_1x10_P5.08mm_Vertical.step
Model: PhoenixContact_MCV_1,5_10-G-5.08_1x10_P5.08mm_Vertical
Manufacturer: Phoenix Contact
Pitch mm: 5.08
