phoenixcontact_mc_1_5_5_g_3_5_1x05_p3_50mm_horizontal.step

Phoenix Contact MC 1,5 5-G-3.5 1x05 P3.50mm Horizontal

Skills Contribute

connectorterminal-blockwire-to-board

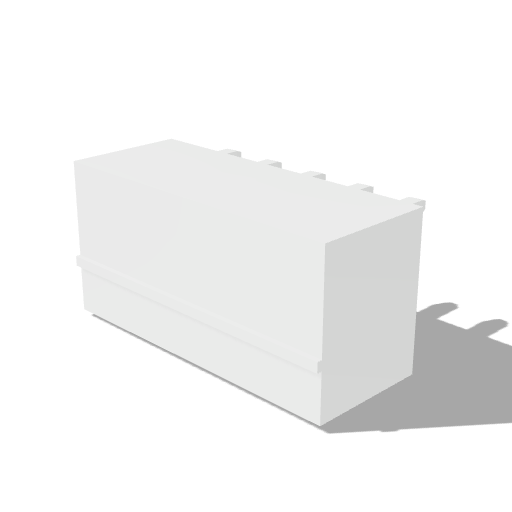

Loading Phoenix Contact MC 1,5 5-G-3.5 1x05 P3.50mm Horizontal 3D viewer

Summary

Connector Phoenix MC connector footprint model, Phoenix Contact MC 1,5 5-G-3.5 1x05 P3.50mm Horizontal.

Part

Category: electronics
Family: connector-phoenix-mc
Step Source: https://gitlab.com/kicad/libraries/kicad-packages3D/-/raw/0bc64e922178140eb6890377646efd45e15011bd/Connector_Phoenix_MC.3dshapes/PhoenixContact_MC_1%2C5_5-G-3.5_1x05_P3.50mm_Horizontal.step
Model: PhoenixContact_MC_1,5_5-G-3.5_1x05_P3.50mm_Horizontal
Manufacturer: Phoenix Contact
Pitch mm: 3.5
