phoenixcontact_gmstbva_2_5_6_g_1x06_p7_50mm_vertical.step

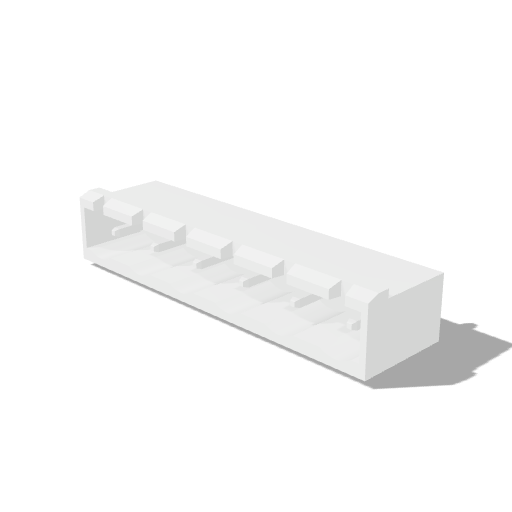

Phoenix Contact GMSTBVA 2,5 6-G 1x06 P7.50mm Vertical

Skills Contribute

connectorterminal-blockwire-to-board

Loading Phoenix Contact GMSTBVA 2,5 6-G 1x06 P7.50mm Vertical 3D viewer

Summary

Connector Phoenix GMSTB connector footprint model, Phoenix Contact GMSTBVA 2,5 6-G 1x06 P7.50mm Vertical.

Part

Category: electronics
Family: connector-phoenix-gmstb
Step Source: https://gitlab.com/kicad/libraries/kicad-packages3D/-/raw/0bc64e922178140eb6890377646efd45e15011bd/Connector_Phoenix_GMSTB.3dshapes/PhoenixContact_GMSTBVA_2%2C5_6-G_1x06_P7.50mm_Vertical.step
Model: PhoenixContact_GMSTBVA_2,5_6-G_1x06_P7.50mm_Vertical
Manufacturer: Phoenix Contact
Pitch mm: 7.5
