phoenixcontact_gmstbv_2_5_2_gf_7_62_1x02_p7_62mm_vertical_threadedflange.step

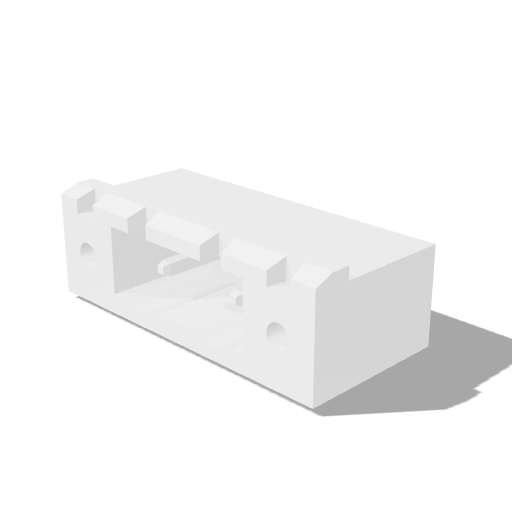

Phoenix Contact GMSTBV 2,5 2-GF-7,62 1x02 P7.62mm Vertical Threaded Flange

Skills Contribute

connectorterminal-blockwire-to-board

Loading Phoenix Contact GMSTBV 2,5 2-GF-7,62 1x02 P7.62mm Vertical Threaded Flange 3D viewer

Summary

Connector Phoenix GMSTB connector footprint model, Phoenix Contact GMSTBV 2,5 2-GF-7,62 1x02 P7.62mm Vertical Threaded Flange.

Part

Category: electronics
Family: connector-phoenix-gmstb
Step Source: https://gitlab.com/kicad/libraries/kicad-packages3D/-/raw/0bc64e922178140eb6890377646efd45e15011bd/Connector_Phoenix_GMSTB.3dshapes/PhoenixContact_GMSTBV_2%2C5_2-GF-7%2C62_1x02_P7.62mm_Vertical_ThreadedFlange.step
Model: PhoenixContact_GMSTBV_2,5_2-GF-7,62_1x02_P7.62mm_Vertical_ThreadedFlange
Manufacturer: Phoenix Contact
Pitch mm: 7.62
