negative_hex_nut_trap_m2p5_print_clearance_0p25mm.step

Hex nut trap cutter bodies, M2.5, tolerance=print_clearance_0p25mm

Skills Contribute

nutmetric

Loading Hex nut trap cutter bodies, M2.5, tolerance=print_clearance_0p25mm 3D viewer

Summary

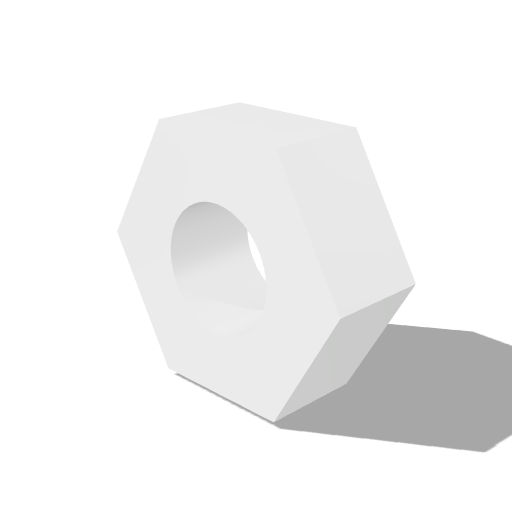

Hex nut trap cutter body, M2.5, tolerance=print clearance 0p25mm.

Part

Category: cad-helper
Family: nut-trap-reference
Geometry Representation: analytic simplified
Bore mm: 2.5
Height mm: 2
Nut Style: hex
Thread: M2.5
Width Across Flats mm: 5
Nominal Size: M2.5
Reference Kind: nut-trap
