mounting_wuerth_wa_smssr_3_3mm_h2_5mm_snaprivet_9776025960.step

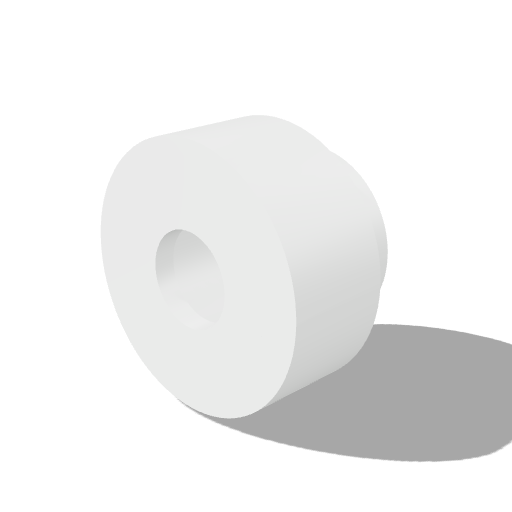

Mounting Wuerth WA-SMSSR-3.3mm H2.5mm Snap Rivet 9776025960

Skills Contribute

standoffhardware

Loading Mounting Wuerth WA-SMSSR-3.3mm H2.5mm Snap Rivet 9776025960 3D viewer

Summary

PCB mounting hardware footprint model, Mounting Wuerth WA-SMSSR-3.3mm H2.5mm Snap Rivet 9776025960.

Part

Category: spacer
Family: pcb-mounting-hardware
Step Source: https://gitlab.com/kicad/libraries/kicad-packages3D/-/raw/0bc64e922178140eb6890377646efd45e15011bd/Mounting_Wuerth.3dshapes/Mounting_Wuerth_WA-SMSSR-3.3mm_H2.5mm_SnapRivet_9776025960.step
Model: Mounting_Wuerth_WA-SMSSR-3.3mm_H2.5mm_SnapRivet_9776025960
Manufacturer: Wuerth Elektronik
