mounting_wuerth_wa_smsr_3_2mm_h5_6mm_reversemount_9775056960.step

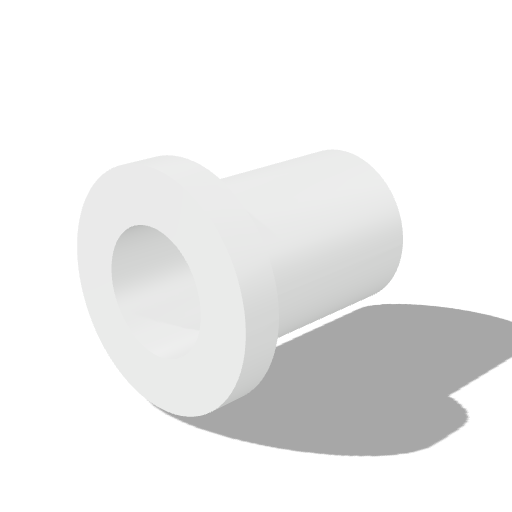

Mounting Wuerth WA-SMSR-3.2mm H5.6mm Reverse Mount 9775056960

Skills Contribute

standoffhardware

Loading Mounting Wuerth WA-SMSR-3.2mm H5.6mm Reverse Mount 9775056960 3D viewer

Summary

PCB mounting hardware footprint model, Mounting Wuerth WA-SMSR-3.2mm H5.6mm Reverse Mount 9775056960.

Part

Category: spacer
Family: pcb-mounting-hardware
Step Source: https://gitlab.com/kicad/libraries/kicad-packages3D/-/raw/0bc64e922178140eb6890377646efd45e15011bd/Mounting_Wuerth.3dshapes/Mounting_Wuerth_WA-SMSR-3.2mm_H5.6mm_ReverseMount_9775056960.step
Model: Mounting_Wuerth_WA-SMSR-3.2mm_H5.6mm_ReverseMount_9775056960
Manufacturer: Wuerth Elektronik
