mounting_wuerth_wa_smsr_3_2mm_h3_1mm_reversemount_9775031960.step

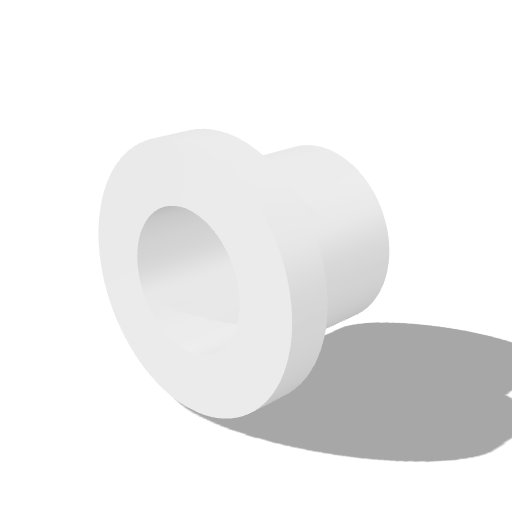

Mounting Wuerth WA-SMSR-3.2mm H3.1mm Reverse Mount 9775031960

Skills Contribute

standoffhardware

Loading Mounting Wuerth WA-SMSR-3.2mm H3.1mm Reverse Mount 9775031960 3D viewer

Summary

PCB mounting hardware footprint model, Mounting Wuerth WA-SMSR-3.2mm H3.1mm Reverse Mount 9775031960.

Part

Category: spacer
Family: pcb-mounting-hardware
Step Source: https://gitlab.com/kicad/libraries/kicad-packages3D/-/raw/0bc64e922178140eb6890377646efd45e15011bd/Mounting_Wuerth.3dshapes/Mounting_Wuerth_WA-SMSR-3.2mm_H3.1mm_ReverseMount_9775031960.step
Model: Mounting_Wuerth_WA-SMSR-3.2mm_H3.1mm_ReverseMount_9775031960
Manufacturer: Wuerth Elektronik
