mounting_wuerth_wa_smsi_m1_6_h6mm_threaddepth2mm_nonpth_97730606330.step

Mounting Wuerth WA-SMSI-M1.6 H6mm Thread Depth2mm No NPTH 97730606330

Skills Contribute

standoffhardware

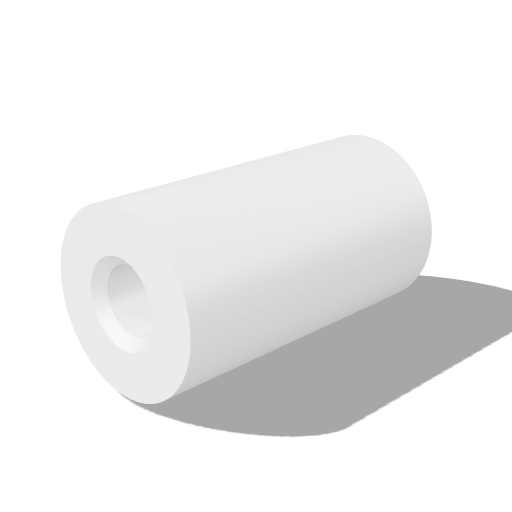

Loading Mounting Wuerth WA-SMSI-M1.6 H6mm Thread Depth2mm No NPTH 97730606330 3D viewer

Summary

PCB mounting hardware footprint model, Mounting Wuerth WA-SMSI-M1.6 H6mm Thread Depth2mm No NPTH 97730606330.

Part

Category: spacer
Family: pcb-mounting-hardware
Step Source: https://gitlab.com/kicad/libraries/kicad-packages3D/-/raw/0bc64e922178140eb6890377646efd45e15011bd/Mounting_Wuerth.3dshapes/Mounting_Wuerth_WA-SMSI-M1.6_H6mm_ThreadDepth2mm_NoNPTH_97730606330.step
Model: Mounting_Wuerth_WA-SMSI-M1.6_H6mm_ThreadDepth2mm_NoNPTH_97730606330
Manufacturer: Wuerth Elektronik
Mounting Style: through-hole
