mounting_wuerth_wa_smsi_m1_6_h4mm_threaddepth2mm_97730406334.step

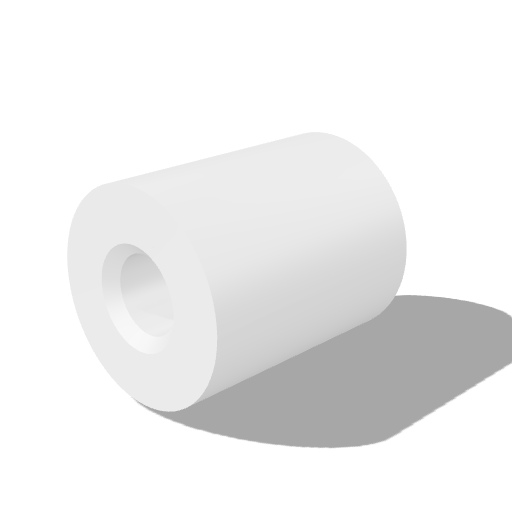

Mounting Wuerth WA-SMSI-M1.6 H4mm Thread Depth2mm 97730406334

Skills Contribute

standoffhardware

Loading Mounting Wuerth WA-SMSI-M1.6 H4mm Thread Depth2mm 97730406334 3D viewer

Summary

PCB mounting hardware footprint model, Mounting Wuerth WA-SMSI-M1.6 H4mm Thread Depth2mm 97730406334.

Part

Category: spacer
Family: pcb-mounting-hardware
Step Source: https://gitlab.com/kicad/libraries/kicad-packages3D/-/raw/0bc64e922178140eb6890377646efd45e15011bd/Mounting_Wuerth.3dshapes/Mounting_Wuerth_WA-SMSI-M1.6_H4mm_ThreadDepth2mm_97730406334.step
Model: Mounting_Wuerth_WA-SMSI-M1.6_H4mm_ThreadDepth2mm_97730406334
Manufacturer: Wuerth Elektronik
Mounting Style: through-hole
