mounting_wuerth_wa_smsi_m1_6_h3mm_threaddepth1_8mm_97730306332.step

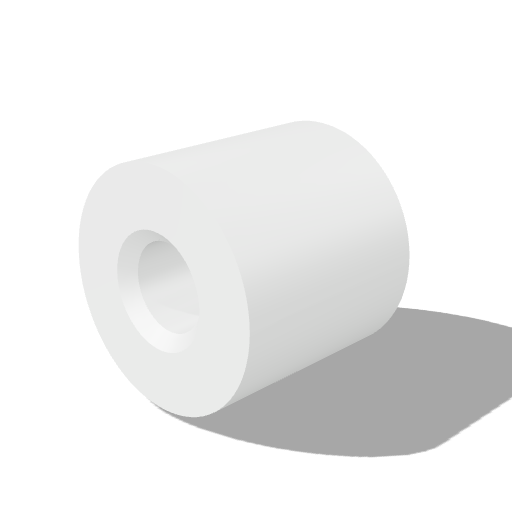

Mounting Wuerth WA-SMSI-M1.6 H3mm Thread Depth1.8mm 97730306332

Skills Contribute

standoffhardware

Loading Mounting Wuerth WA-SMSI-M1.6 H3mm Thread Depth1.8mm 97730306332 3D viewer

Summary

PCB mounting hardware footprint model, Mounting Wuerth WA-SMSI-M1.6 H3mm Thread Depth1.8mm 97730306332.

Part

Category: spacer
Family: pcb-mounting-hardware
Step Source: https://gitlab.com/kicad/libraries/kicad-packages3D/-/raw/0bc64e922178140eb6890377646efd45e15011bd/Mounting_Wuerth.3dshapes/Mounting_Wuerth_WA-SMSI-M1.6_H3mm_ThreadDepth1.8mm_97730306332.step
Model: Mounting_Wuerth_WA-SMSI-M1.6_H3mm_ThreadDepth1.8mm_97730306332
Manufacturer: Wuerth Elektronik
Mounting Style: through-hole
