mounting_wuerth_wa_smsi_m1_6_h2_5mm_threaddepth1_5mm_97730256332.step

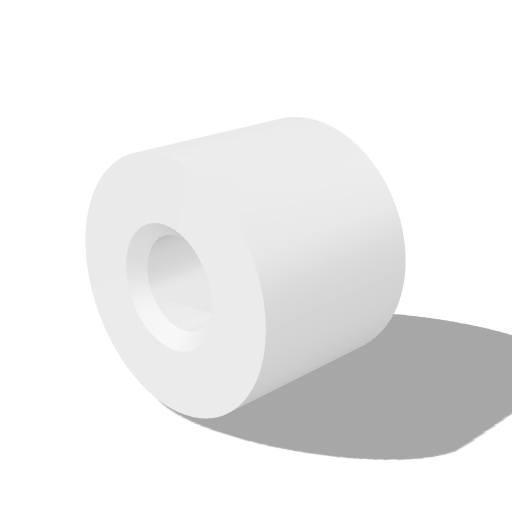

Mounting Wuerth WA-SMSI-M1.6 H2.5mm Thread Depth1.5mm 97730256332

Skills Contribute

standoffhardware

Loading Mounting Wuerth WA-SMSI-M1.6 H2.5mm Thread Depth1.5mm 97730256332 3D viewer

Summary

PCB mounting hardware footprint model, Mounting Wuerth WA-SMSI-M1.6 H2.5mm Thread Depth1.5mm 97730256332.

Part

Category: spacer
Family: pcb-mounting-hardware
Step Source: https://gitlab.com/kicad/libraries/kicad-packages3D/-/raw/0bc64e922178140eb6890377646efd45e15011bd/Mounting_Wuerth.3dshapes/Mounting_Wuerth_WA-SMSI-M1.6_H2.5mm_ThreadDepth1.5mm_97730256332.step
Model: Mounting_Wuerth_WA-SMSI-M1.6_H2.5mm_ThreadDepth1.5mm_97730256332
Manufacturer: Wuerth Elektronik
Mounting Style: through-hole
