molex_picoflex_90814_0026_2x13_p1_27mm_vertical.step

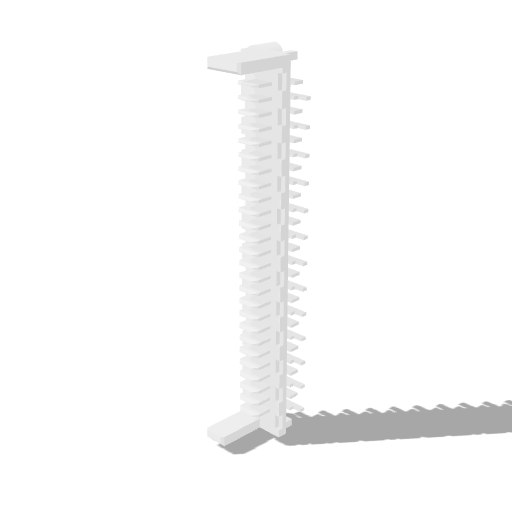

Molex Picoflex 90814-0026 2x13 P1.27mm Vertical

Skills Contribute

connectorboard-to-boardwire-to-board

Loading Molex Picoflex 90814-0026 2x13 P1.27mm Vertical 3D viewer

Summary

Molex PicoFlex vertical latch connector, Molex Picoflex 90814-0026 2x13 P1.27mm Vertical.

Part

Category: electronics
Family: connector-molex
Model: Molex_Picoflex_90814-0026_2x13_P1.27mm_Vertical
