molex_picoflex_90814_0018_2x09_p1_27mm_vertical.step

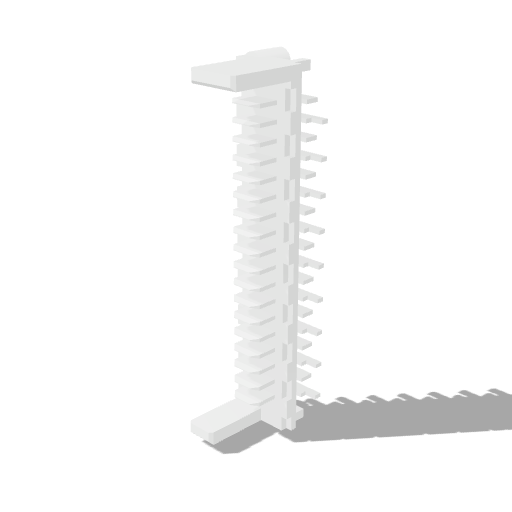

Molex Picoflex 90814-0018 2x09 P1.27mm Vertical

Skills Contribute

connectorboard-to-boardwire-to-board

Loading Molex Picoflex 90814-0018 2x09 P1.27mm Vertical 3D viewer

Summary

Molex PicoFlex vertical latch connector, Molex Picoflex 90814-0018 2x09 P1.27mm Vertical.

Part

Category: electronics
Family: connector-molex
Model: Molex_Picoflex_90814-0018_2x09_P1.27mm_Vertical
