led_sk6812mini_e_3_2x2_8mm_p1_5mm_reversemount.step

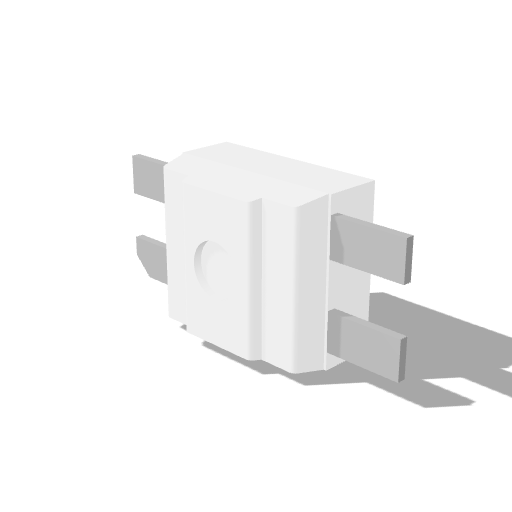

LED SK6812 MINI-E 3.2x2.8mm P1.5mm Reverse Mount

Skills Contribute

semiconductordiodeindicatorsmd

Loading LED SK6812 MINI-E 3.2x2.8mm P1.5mm Reverse Mount 3D viewer

Summary

SMD LED footprint model, LED SK6812 MINI-E 3.2x2.8mm P1.5mm Reverse Mount.

Part

Category: electronics
Family: led-smd
Step Source: https://gitlab.com/kicad/libraries/kicad-packages3D/-/raw/0bc64e922178140eb6890377646efd45e15011bd/LED_SMD.3dshapes/LED_SK6812MINI-E_3.2x2.8mm_P1.5mm_ReverseMount.step
Model: LED_SK6812MINI-E_3.2x2.8mm_P1.5mm_ReverseMount
Mounting Style: smd
Pitch mm: 1.5
