led_rgb_wuerth_plcc4_3_2x2_8mm_150141m173100.step

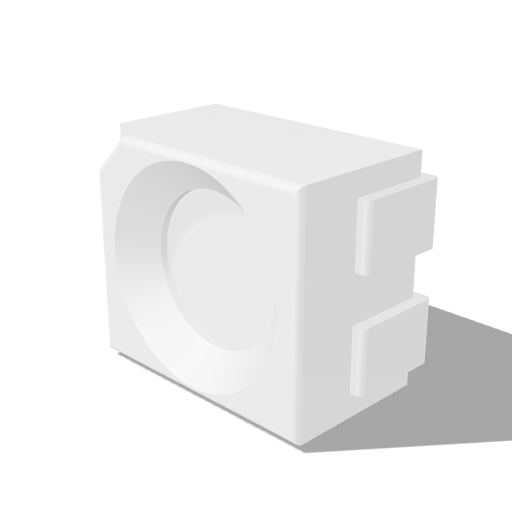

LED RGB Wuerth-PLCC4 3.2x2.8mm 150141 M173100

Skills Contribute

semiconductordiodeindicatorsmd

Loading LED RGB Wuerth-PLCC4 3.2x2.8mm 150141 M173100 3D viewer

Summary

SMD LED footprint model, LED RGB Wuerth-PLCC4 3.2x2.8mm 150141 M173100.

Part

Category: electronics
Family: led-smd
Step Source: https://gitlab.com/kicad/libraries/kicad-packages3D/-/raw/0bc64e922178140eb6890377646efd45e15011bd/LED_SMD.3dshapes/LED_RGB_Wuerth-PLCC4_3.2x2.8mm_150141M173100.step
Model: LED_RGB_Wuerth-PLCC4_3.2x2.8mm_150141M173100
Mounting Style: smd
