led_rectangular_w7_62mm_h4_55mm_p5_08mm_r3.step

LED Rectangular W7.62mm H4.55mm P5.08mm R3

Skills Contribute

semiconductordiodeindicatorthrough-hole

Loading LED Rectangular W7.62mm H4.55mm P5.08mm R3 3D viewer

Summary

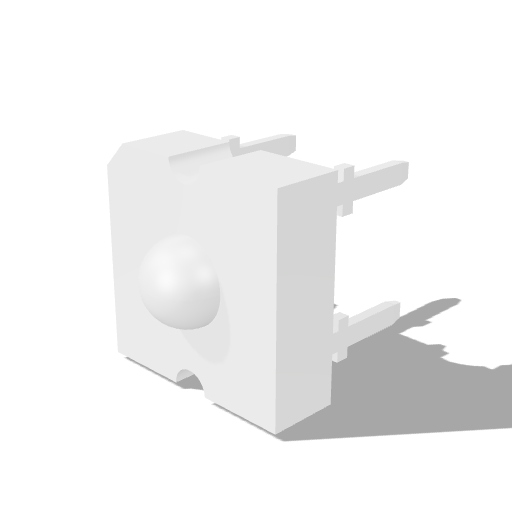

Through-hole LED footprint model, LED Rectangular W7.62mm H4.55mm P5.08mm R3.

Part

Category: electronics
Family: led-tht
Step Source: https://gitlab.com/kicad/libraries/kicad-packages3D/-/raw/0bc64e922178140eb6890377646efd45e15011bd/LED_THT.3dshapes/LED_Rectangular_W7.62mm_H4.55mm_P5.08mm_R3.step
Model: LED_Rectangular_W7.62mm_H4.55mm_P5.08mm_R3
Mounting Style: through-hole
Pitch mm: 5.08
