led_d5_0mm_horizontal_o1_27mm_z9_0mm.step

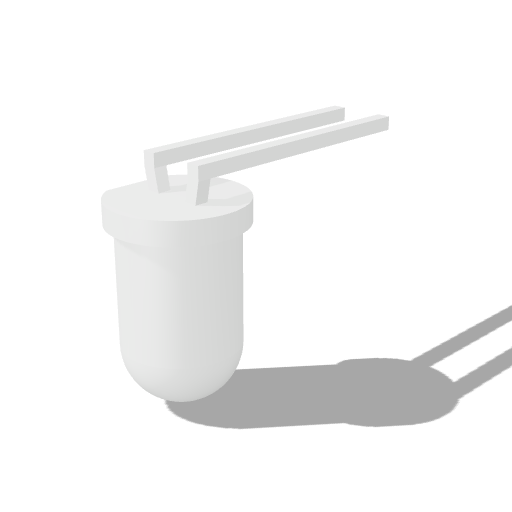

LED D5.0mm Horizontal O1.27mm Z9.0mm

Skills Contribute

semiconductordiodeindicatorthrough-hole

Loading LED D5.0mm Horizontal O1.27mm Z9.0mm 3D viewer

Summary

Through-hole LED footprint model, LED D5.0mm Horizontal O1.27mm Z9.0mm.

Part

Category: electronics
Family: led-tht
Step Source: https://gitlab.com/kicad/libraries/kicad-packages3D/-/raw/0bc64e922178140eb6890377646efd45e15011bd/LED_THT.3dshapes/LED_D5.0mm_Horizontal_O1.27mm_Z9.0mm.step
Model: LED_D5.0mm_Horizontal_O1.27mm_Z9.0mm
Mounting Style: through-hole
