led_d5_0mm_horizontal_o1_27mm_z3_0mm_irblack.step

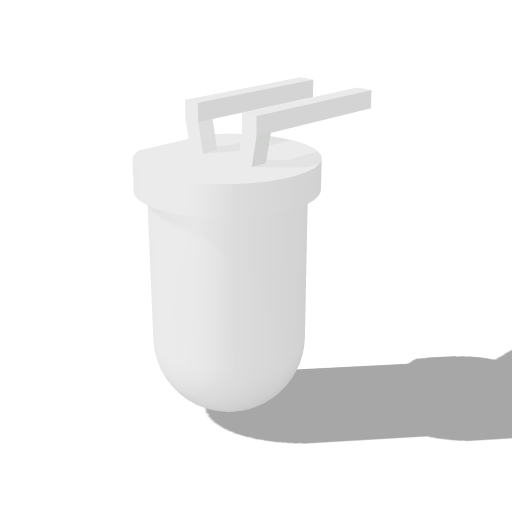

LED D5.0mm Horizontal O1.27mm Z3.0mm IR Black

Skills Contribute

semiconductordiodeindicatorthrough-hole

Loading LED D5.0mm Horizontal O1.27mm Z3.0mm IR Black 3D viewer

Summary

Through-hole LED footprint model, LED D5.0mm Horizontal O1.27mm Z3.0mm IR Black.

Part

Category: electronics
Family: led-tht
Step Source: https://gitlab.com/kicad/libraries/kicad-packages3D/-/raw/0bc64e922178140eb6890377646efd45e15011bd/LED_THT.3dshapes/LED_D5.0mm_Horizontal_O1.27mm_Z3.0mm_IRBlack.step
Model: LED_D5.0mm_Horizontal_O1.27mm_Z3.0mm_IRBlack
Mounting Style: through-hole
